Review: the 2017 Olympus M. Zuiko Digital 45mm f1.2 PRO

With the Micro Four Thirds lens collection now no longer lacking good, affordable zoom and prime options, Olympus has shifted their focus to making premium large aperture prime lenses. In addition to the existing M.Zuiko 25mm F1.2 PRO lens, Olympus just announced two new PRO lenses: the 17mm F1.2 and the 45mm F1.2. Special thanks to Olympus Malaysia for the M.Zuiko 45mm F1.2 PRO loan unit for this review. I’ve had one full day to shoot with the lens on the streets and behind the scenes of a Chinese Opera.

The highlights of the Olympus M.Zuiko 45mm F1.2 PRO lens are:

  • Designed to be optimally balanced between delivering excellent resolution and producing beautiful “feathered” bokeh.
  • Complex lens construction consisting 14 Elements in 10 Groups with 1 ED lens, 4 HR lenses, 1 aspherical lens
  • Full weather sealing (splash and dust proof)
  • Minimum focusing distance of 0.5 meter and maximum magnification of 0.1x
  • LF-n button (customize-able function button on lens), manual focus clutch mechanism, takes 62mm filters and weighs about 410g

You can find the full technical specifications on the official product page.

In case some of you aren’t aware yet, I left my Olympus employment in April. So neither MT nor I are affiliated to Olympus in any way and this is an independent review. The Olympus M.Zuiko 45mm F1.2 PRO lens and OM-D E-M1 Mark II camera body were provided on loan by Olympus Malaysia strictly for review purposes only. This is an experience based review and is likely to be subjective. All images were shot in RAW and post-processed in Capture One Pro version 10.2. For higher resolution images with full EXIF data intact, kindly view the images in the online gallery here.

Read on for the rest of the review.


F3.5, 1/320sec, ISO1250


F1.2, 1/400sec, ISO200
Image shot at F1.2 shows high level of sharpness, and beautiful bokeh


Left F1.2, Right F2.8
F1.2 produces extremely shallow depth of field, but areas in focus are very sharp. At F2.8, the depth of field improved with more zone in focus, and sharpness also improved by a little.


F1.2, 1/800sec, ISO500


F1.2, 1/8000sec, ISO200

Much like its sibling, the Olympus M.Zuiko 25mm F1.2 PRO, the new 45mm F1.2 creates images with impressive sharpness. Even shooting at wide open aperture of F1.2, the lens is capable of delivering very sharp results. Stopping the lens to F2 yields slight, but noticeable improvement in sharpness, and this improves a little more at F2.8. I did not observe any more increase in sharpness beyond this, and even at F1.2 I was already satisfied with the level of detail this lens can capture.  I would say the level of sharpness is roughly equivalent to what can be achieved with the Olympus 75mm F1.8 or 25mm F1.2 PRO lenses. In case you’re wondering, the 45mm F1.2 is, in terms of sharpness, significantly better than the older but highly respected 45mm F1.8 lens. I am not surprised if the technical tests rank this Olympus 45mm F1.2 PRO lens to be among the top 3 sharpest Micro Four Thirds lenses.

Considering the medium telephoto equivalent focal length of 90mm (in 35mm format), this 45mm F1.2 can produce shallow depth of field even on the smaller Micro Four Thirds image sensor size. Shooting wide open allows sufficient subject isolation with good amounts of background blur.

Olympus claims that the 45mm F1.2 lens was designed to achieve “feathered bokeh”: a bokeh style that transitions smoothly from the in-focus to the out-of-focus area of the images, creating smoother background bokeh thus allowing the subject in focus to stand out beautifully. In order to accomplish this, Olympus added an aberration measuring instrument to calculate the defocusing at aberration level, a technology transmitted from the advanced microscope development.

To be honest, I have not the slightest idea what “feather bokeh” is, and this is the first time I’ve heard of it. However, having active instrumentation while shooting and real time processing just to control how the bokeh looks seems a little over-ambitious. Am I seeing the benefits of the special “feathered bokeh” effect from the Olympus 45mm F1.2 lens? This is a very subjective question to answer. Yes the bokeh is smooth, rounded, creamy with good transition drop off from the subject to out of focus area – that much I can observe. Is there really anything out of the ordinary? I shall leave the sample images here for you to judge for yourself.


F13, 1/3sec, ISO200


F1.2, 1/25,600sec, ISO200, Electronic Shutter used
Shooting at F1.2 in superbly bright condition, the image shows very minor trace of chromatic aberration. There is almost no distortion observed.


F5.6, 1/1,600sec, ISO200
Stopping down to F5.6, image shot with the 45mm PRO lens is almost flawless. Incredible level of sharpness, and almost no noticeable flaw.


F1.2, 1/32,000sec, ISO200, Electronic Shutter used
Another take on the wide open F1.2, under harsh, afternoon sun. Technical flaw control of the 45mm PRO lens is impressive, even under extreme conditions, shooting wide open at F1.2. Sharpness at F1.2 is also seen to be even from center to the edges of the image.


F1.8, 1/320sec, ISO200
Close up shooting test, I have done the same shots for varying apertures of F1.2, F1.8, F2.8 and F5.6

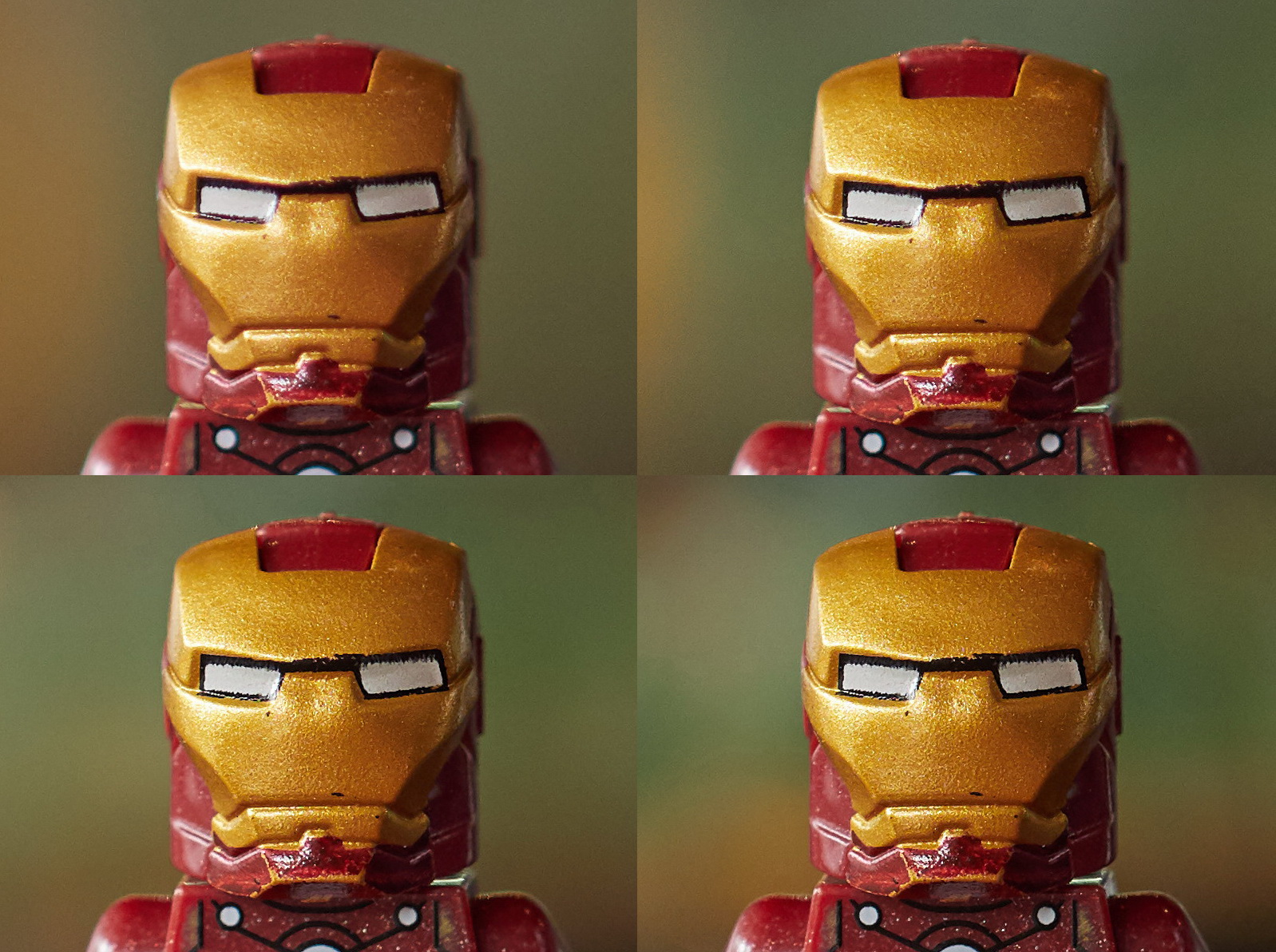

100% crops of F1.2 (top left), F1.8 (top right), F2.8 (bottom left) and F5.6 (bottom right) comparison. You may see the original non-cropped photographs, and the differing bokeh profiles based on the changing apertures on the full gallery here.

Technical flaws are controlled well on the Olympus 45mm F1.2 PRO lens. There is only minimal trace of chromatic aberration, noticeable when shooting at wide open F1.2, but is not intrusive at all and can be easily removed if required. There is no detectable distortion, not from my crude inspection of the building landscape images I’ve shot. There is also no issue with soft corners, in fact sharpness appears to be very even even at wide apertures of the lens. Stopping down the lens to F2.8, mitigates most, if any, of the flaws. Given the overcast conditions and a sun intent on playing hide-and-seek, I did not have the chance to test for flare. So far I have not encountered any ghosting or flare issues.

Having only a 0.5m minimum focusing distance is nothing to shout about when it comes to close up shooting, but lens performance up close is just as good. The lens is capable of delivering sharp images, even when used at close focusing distances. It is not advisable to use wide open apertures, due to extremely shallow depth of field.

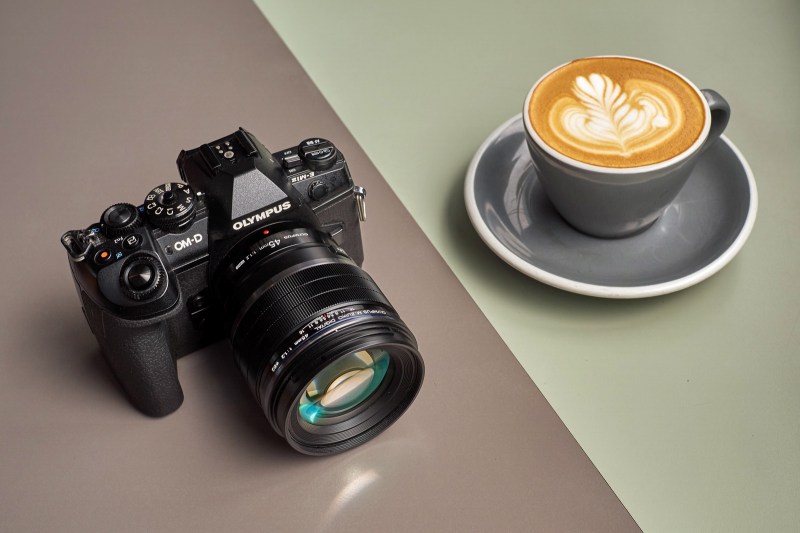

On the Olympus OM-D E-M1 Mark II, the lens handles well. The size of the 45mm PRO lens is almost identical to the 12-40mm PRO lens. If you’ve handled the 12-40mm PRO lens before, you should be able to gauge how this new 45mm PRO lens will handle. They weigh almost the same and I was out all day shooting with the E-M1 Mark II and 45mm PRO combo without feeling any strain on my hands, shoulders or wrists. The lens felt balanced on the camera, and it was comfortable holding it for long hours. A lot of people may complain about the larger than usual size of the lens in comparison to other smaller Olympus prime lenses like the 17mm F1.8 or 25mm F1.8 lenses. However, in order to have a high quality F1.2 lens, I believe it is physically impossible to make it smaller. I have tried the 45mm PRO lens briefly on an Olympus PEN-F and Olympus E-M10 Mark II bodies and both combinations felt balanced and comfortable too.


F1.2, 1/100sec, ISO1,600


F1.2, 1/125sec, ISO1,250


F1.2, 1/200sec, ISO1,600


F1.2, 1/400sec, ISO3,200


F1.2, 1/1,250sec, ISO1,600


F2.8, 1sec, ISO200, Handheld
Combined with the efficient Image Stabilization system, the F1.2 lens can open up shooting possibilities in challenging situations.

Autofocus performance of the Olympus 45mm F1.2 PRO lens on the E-M1 Mark II body was superbly fast and extremely accurate. I almost had no misses. Shooting at F1.2, dealing with incredibly shallow depth of field, the high rate of critically sharp, in-focus images this lens managed to capture was nothing short of amazing. I was a little worried as I was frantically reviewing my images after each shot, just to make sure I had nailed my shots.  Having an efficient contrast detect AF helps in nailing critical focus accuracy, something I believe some of  the traditional dSLR AF system still struggle to achieve.

Even in less than ideal lighting conditions, the E-M1 Mark II and 45mm PRO lens combo nailed focus with no issues at all. In some of the sample shots shown above, the subjects were actually constantly in motion. The man carrying the red plastic stools was walking at a fast pace, and I used single AF. The street music performers (guitarist and drummer) kept shaking their heads and bodies, yet shooting wide open at F1.2, I have no issue in getting my shots, all in perfect focus.

While I was happy with the fast performance of the lens and the excellent image quality, the one thing that made me fall in love with the lens, is how the rendering characteristics of the images by this 45mm PRO lens look. I am not just talking about the bokeh quality, or the “feather” look that Olympus claims. This may sound purely subjective, and personal but I find the images from the 45mm PRO lens to be lively, vibrant and realistic. There is an extra dimension to the images that I did not see in my frequently used 45mm F1.8 lens, or any other lenses. In fact, I did not notice this quality even with the Nocticron 42.5 F1.2 lens which I did use extensively for a while. Whatever secret sauce Olympus is using here, I sure hope they add it to their future lenses.


F1.2, 1/250sec, ISO200


F1.2, 1/200sec, ISO200


F1.2, 1/400sec, ISO250


F1.2, 1/160sec, ISO400


F1.2, 1/160sec, ISO800


F1.2, 1/30sec, ISO250


F1.2, 1/1,000sec, ISO200

The special rendering characteristics can be seen in the series of BTS Chinese Opera images. The strengths and benefits of the 45mm PRO lens shone throughout this particular session. The F1.2 wide aperture, combined with medium telephoto focal length produced the shallow depth of field needed to isolate the subjects from the messy background.  The bokeh is smooth and beautiful, allowing the subjects in focus to stand out. The images were mostly shot wide open at F1.2, yet zooming into the areas in focus reveals staggering levels of sharpness and incredible amounts of fine detail.

I have nothing negative to write about the Olympus M.Zuiko 45mm F1.2 PRO lens. While some may complain about the bigger size, I find it reasonable and I would not have a smaller lens with compromises made on the excellent optical quality. While the official retail price is not yet available in Malaysia, it is priced at $1,200 in the US and I was informed that Malaysian pricing should be quite similar to the 25mm PRO – a lens many are unwilling to invest in. However if you are after the best of the best that Micro Four Thirds can offer, the Olympus 45mm F1.2 is a lens that you should seriously consider.

The Olympus M.Zuiko 45mm F1.2 PRO Lens is available for pre-order from B&H
The Olympus OM-D E-M1 Mark II Is available from B&H
